Streamline Pro Theme

Thank you for using the Genesis Framework by StudioPress and selecting the Streamline Pro theme. Following are the instructions for setting up your site to resemble the Streamline Pro theme demo.


If you have any trouble, please fill out the contact form for assistance.

You may wish to have the Streamline Pro theme demo open for reference while setting up your theme. The setup documentation for this theme has been broken down into the following sections:

Pre-Installation Setup

Compatibility

Make sure you have the following installed:

  • WordPress version 3.6+
  • Genesis Framework version 2.0+

Plugins

Before you begin, you will need to install and activate the following plugins Of course, you may substitute your favorite plugin, but this is the one used in the Streamline Pro theme demo:

Back to Top

How to Import Demo Content

For your convenience, an export file of the Streamline Pro theme demo site is available to assist in the setup of your Streamline Pro theme. You’ll find more information about this in the Importing Demo Content tutorial.

Back to Top

Theme Installation

Once you have completed the pre-installation steps and you have the Genesis Framework installed, you may install the Streamline Pro theme. You will find theme installation instructions here.

Back to Top

How to Configure the Genesis Theme Settings

In your WordPress admin, navigate to Genesis > Theme Settings. Configure the Theme Settings as follows:

Back to Top

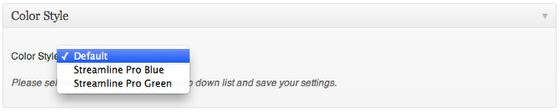

Color Style

  • Click on the Color Style Dropdown to select an alternative color scheme for your site.

Back to Top

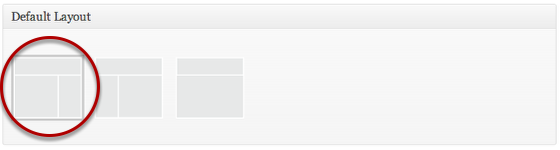

Default Layout

  • Click a thumbnail to select the Default Layout. The Streamline Pro theme uses the Content > Sidebar option.

Back to Top

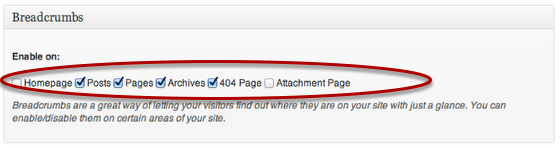

Breadcrumbs

The Streamline Pro theme demo is configured to display Breadcrumbs on Posts, Pages, Archives, and 404 Page.


Back to Top

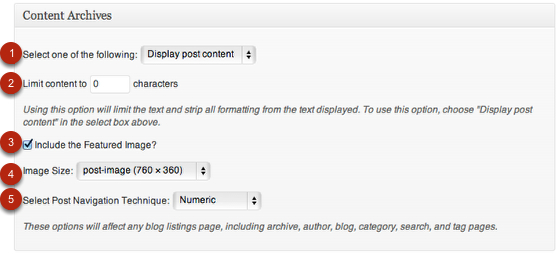

Content Archives

  1. For Content Archives, the default setting of “Display post content” is used in the demo.
  2. Leave the “Limit content to __ characters” option blank or set to 0.
  3. Check the “Include the Featured Image?” checkbox.
  4. Select the “post-image” size from the Image Size dropdown
  5. Using the drop down box, select “Numeric” for the “Post Navigation Technique.”

Note: Because a featured image is placed above the posts on the home page, archive pages, and on sIngle posts special consideration should be given to the images used in the post content in order to avoid having images displaying twice. We recommend setting a featured image for each post that does not appear in the content of the post.

Be sure to click the “Save Settings” button to preserve your changes.


Back to Top

How to Configure the Site Title Header Text

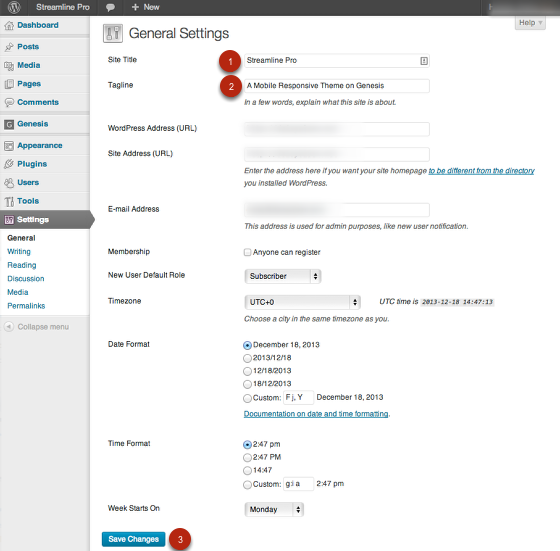

The site title and description for your site can be set by navigating to Settings > General.

  1. The Site Title will display in the upper left corner of your site.
  2. The Tagline Setting will display directly below the Site Title when using the Streamline Pro Theme.
  3. Be sure to click the “Save Settings” button to preserve your changes.

Back to Top

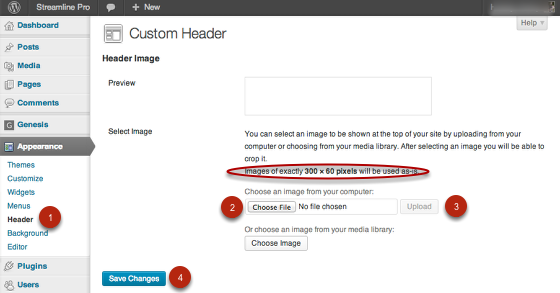

How to Use a Custom Header Image

If you prefer a Logo Image rather than a text based Site Title it is possible to use a small logo style image that will display in the upper left corner of the site.

  1. Navigate to Appearance > Header menu in your WordPress admin panel
  2. Click “Browse” and Navigate to the image you would like to use for a Logo. Images of exactly 300 × 60 pixels will give the best results. Other sizes will be cropped in the upload process to create an image of the correct size.
  3. Click “Upload” to copy the image from your computer to your website.
  4. Be sure to click the “Save Settings” button to preserve your changes.

Back to Top

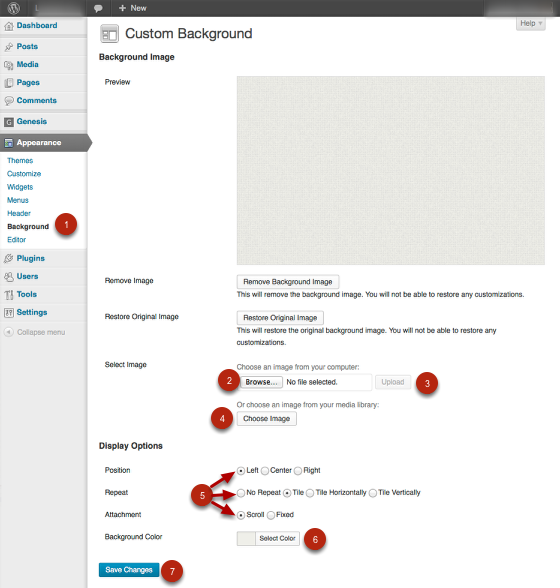

How to Use a Background Image or Color

The Streamline Pro theme demo can be configured to display an image behind the content area of the site.

  1. Navigate to Appearance > Background in your WordPress admin panel.
  2. Use the “Browse” button to select the background image you wish to use from your computer.
  3. Once the image has been selected click the “Upload” button to load the image for use on your site.
  4. Alternatively you can use the “Choose Image” button to select the background image you have loaded to your site previously.
  5. The Display Options settings for Position, Repeat, and Attachment can be set depending on the optimal settings for the image you have chosen.
  6. To select a Background Color to show around, or instead of a background image in click “Select Color” and choose a color or enter a hexadecimal color code.
  7. Click the “Save Changes” button to preserve your changes.

Note: This background image does not need to be a specific size since the theme is responsive and will crop, shrink, and grow the image as needed.


Back to Top

How to Configure the Navigation Menus

In the Streamline Pro theme, the Primary Navigation menu area is used in the demo.

The default navigation areas can be set by navigating to Appearance > Menus > Manage Locations. Set the Primary navigation menu to the previously created menu of your choice.

A Menu set in the Primary and Secondary Navigation Menu locations will display just below the header area of your site.

Be sure to click the “Save Settings” button to preserve your changes.


Back to Top

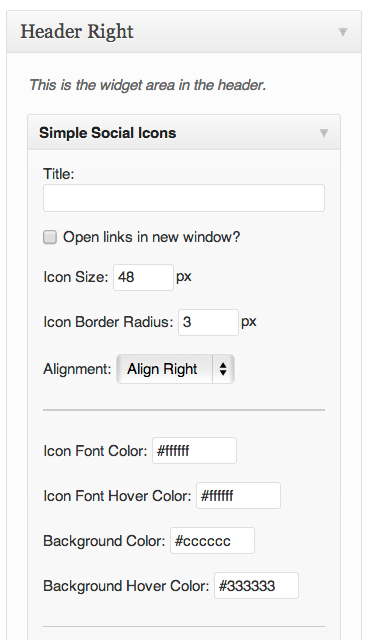

Header Right Widget Area

The Streamline Pro theme uses a Simple Social Icons widget placed in the header right widget area.

Genesis Simple Social Icons Widget Settings:

  • Title: Blank
  • Icon Size: 48px
  • Icon Border Radius: 3px
  • Alignment: Align Right
  • Icon Font Color: #ffffff
  • Icon Font Hover Color: #ffffff
  • Background Color: #cccccc
  • Background Hover Color: #333333

Be sure to click the “Save” button to preserve your changes.


Back to Top

How to Configure the Home Page

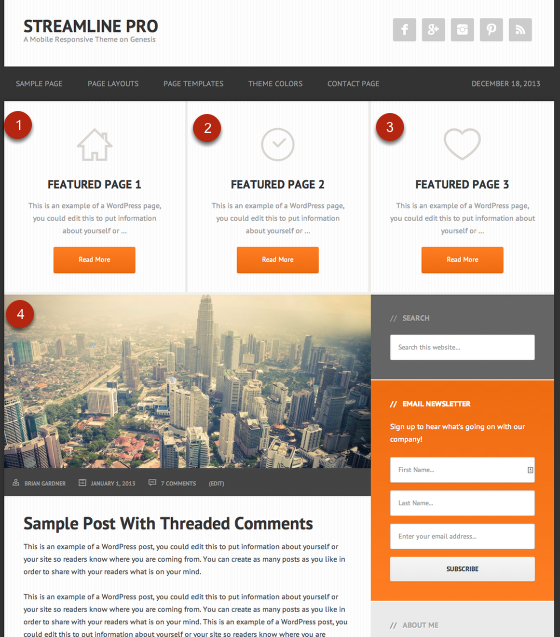

The Streamline Pro theme demo home page is configured via several widget areas.

  1. Home – Featured 1: Displays to the far left, below the header and navigation area.
  2. Home – Featured 2: Displays in the middle, below the header and navigation area
  3. Home – Featured 3: Displays to the far right below the header and navigation area
  4. Directly below the three Home Featured widget areas a blog style listing of recent posts and sidebar will display.

Note: If no Widget areas are active in any of the Home Page Specific Widget Areas a Blog Style Home page will be displayed. If you wish to use a Static Page for your home page any widgets added to the three Home widget areas will display above the static page content.


Back to Top

Refer to the following for settings used in the Streamline Pro Demo for each of the widgets used in the Home widget areas


Back to Top

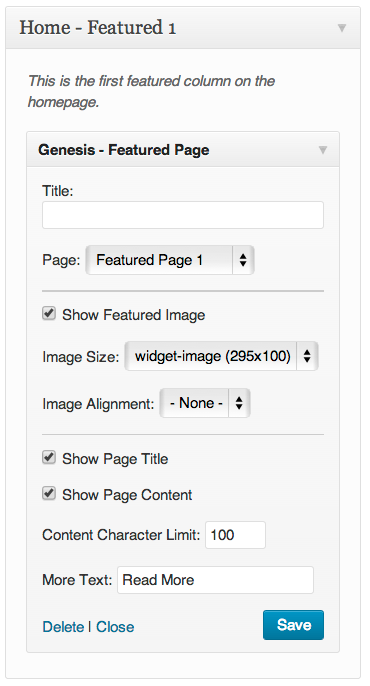

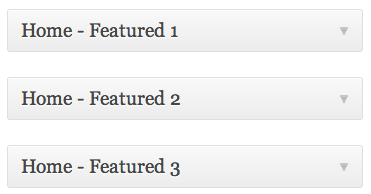

Home – Featured Widget Areas

Each of the three Home Featured widget areas are configured with a Genesis – Featured Page Widget with settings shown in the following screen capture.


Back to Top

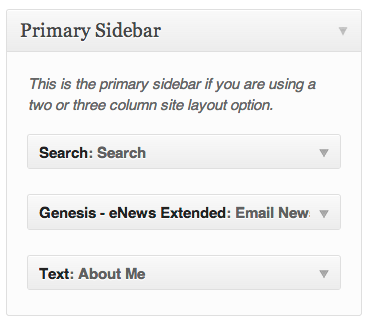

How to Configure the Primary Sidebar Area

The following widgets are used in the Primary Sidebar area that displays to the right side of the content area.


Back to Top

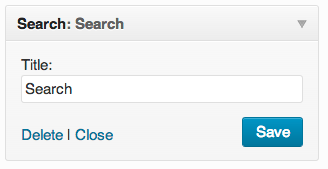

Search Widget



  • Title: Search

Be sure to click the “Save” button to preserve your changes.


Back to Top

Genesis – eNews Extended Widget

Be sure to click the “Save” button to preserve your changes.


Back to Top

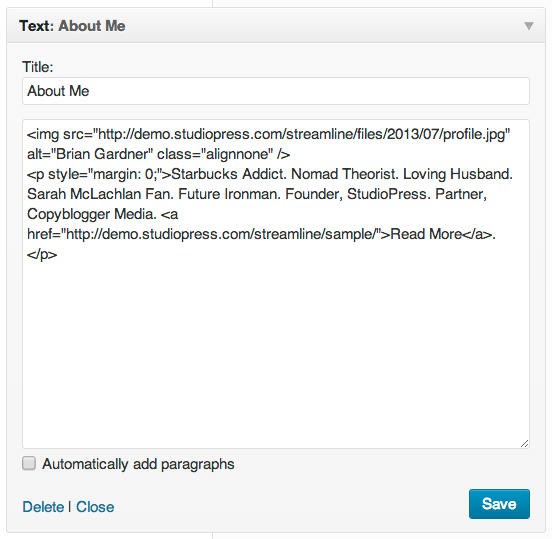

Text Widget

Use text of your choice here. The Streamline Pro demo uses code for a short biographical block of HTML.

Be sure to click the “Save” button to preserve your changes.


Back to Top

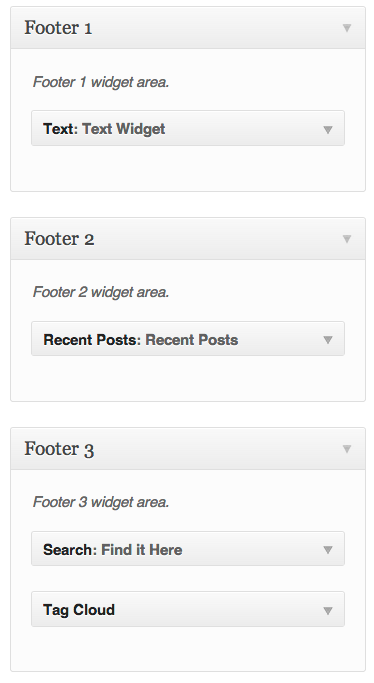

How to Configure the Footer Widget Areas

The Streamline Pro theme demo uses the included 3 Footer Widget areas. The following outlines the widgets used in the Streamline Pro theme demo. You may use any widgets you like in these areas.


Back to Top

Special Widget areas Included in the Streamline Pro Theme

The Streamline Pro theme includes one special widget area designed to display additional content on your site:

  • After Entry Widget Area – Displays after the content on single posts

Back to Top

Congratulations! You are now ready to begin adding content and personal touches to your new Streamline Pro and Genesis powered website. If you run into any problems along the way or have questions, please fill out the contact form and let us know how we can help.
